8.5. Création de l'Action 1213 Téléverser


8.5.1. Creating Action 1213 Upload

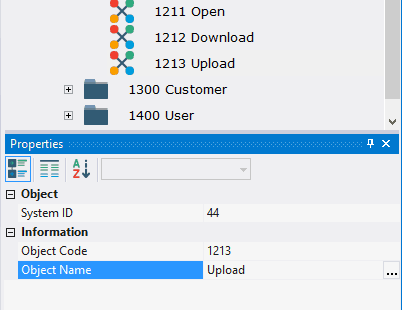

To create action 1213 Upload: Call the context menu of the folder 1200 Comments; Select New Object > Action; In the Properties window, enter 1213 in the Object Code field, enter Upload in the Object Name field. Open object 1213 Upload for modification by double-clicking the left mouse button;

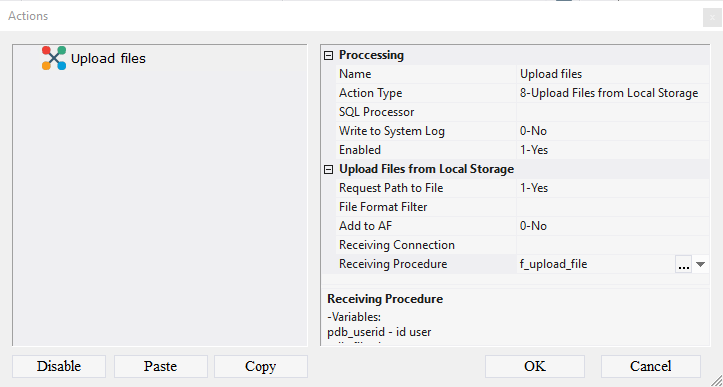

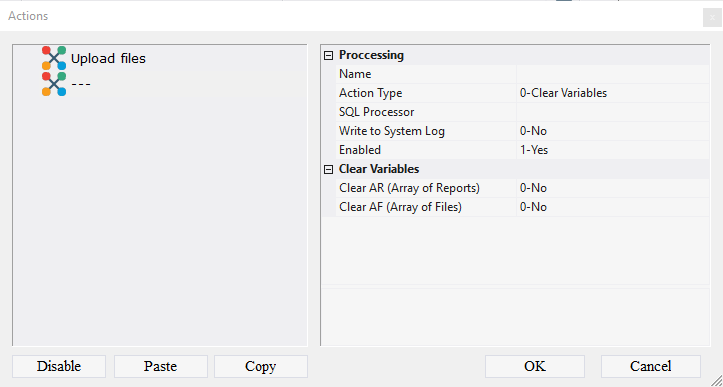

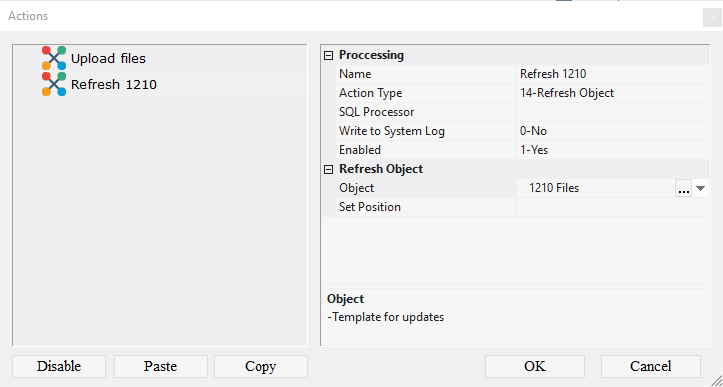

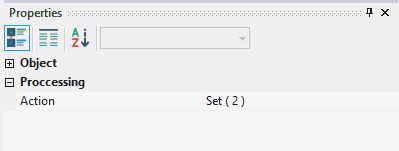

Note: if you want to study action design process in detail, follow the steps - If you already know how to do this, skip the steps - and go to the step In the Action field click the Advanced button; In the appeared window call the context menu; Select the item Add Action In the Name field, enter Upload files In the Action Type field, select 8-Upload Files from Local Storage from the drop-down list; In the Request Path to File field, specify the value 1-Yes; In the Receiving Procedure field, select f_upload_file from the drop-down list; Call the context menu; Select the item Add Action In the Name field enter Refresh 1210; In the Action Type field select 14-Refresh Object; in the Object field, select the object 1210 Files click the OK button;

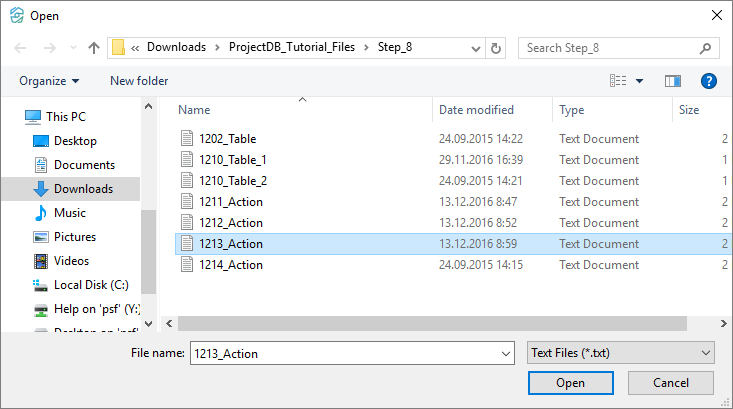

Note: If you followed the steps -, skip steps - and go to step Download the file archive containing the settings of objects; Extract the files from the downloaded archive; the context menu by right-clicking in the data area; Select Import settings from the file; In the appeared window specify the path to the file 1213_Action; Click the Open button;


All action settings will be imported. Save the changes by selecting Menu > Save. Close the object by clicking on the corresponding button.



8.5.2. Next

8.6. Creating Action 1214 Delete
