8.6. Création de l'Action 1214 Supprimer


8.6.1. Creating Action 1214 Delete

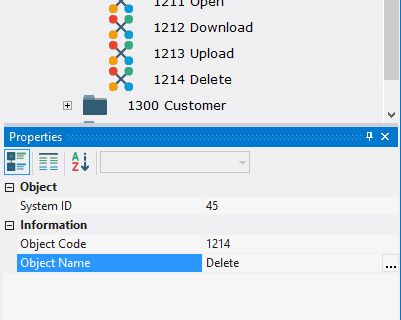

To create an action 1214 Delete: Call the context menu of the folder 1200 Comments; Select New Object > Action; In the Properties window, enter 1214 in the Object Code field, enter Delete in the Object Name field. open object 1214 Delete for modification by double-clicking the left mouse button;

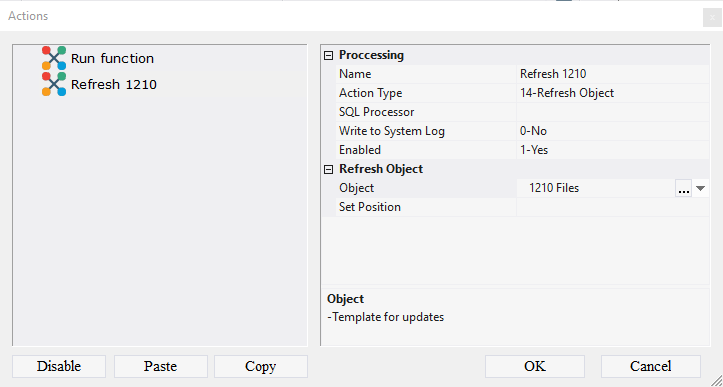

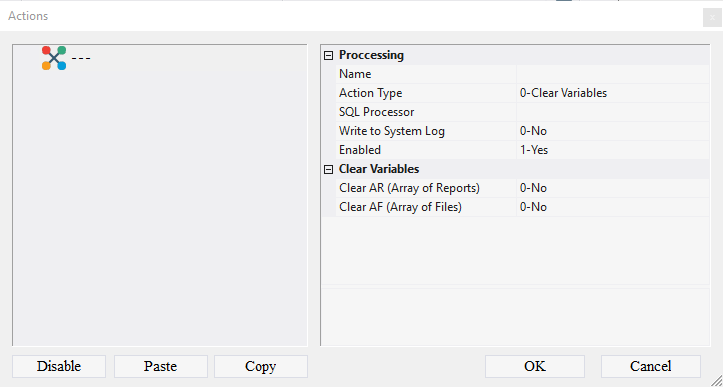

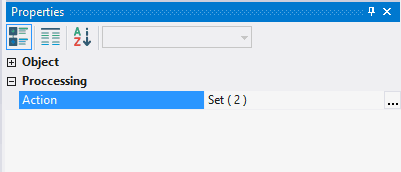

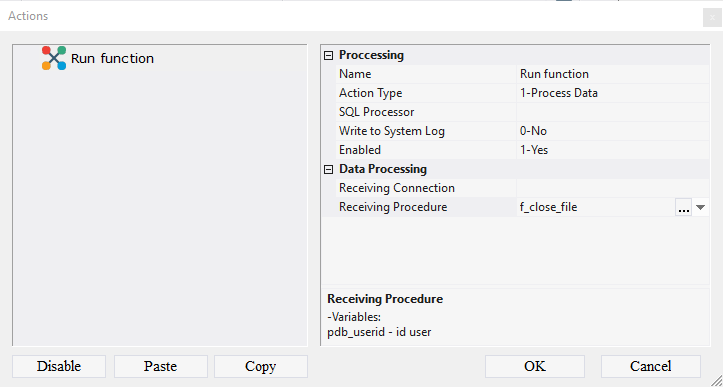

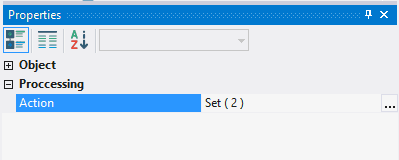

Note: if you want to study action design process in detail, follow the steps - If you already know how to do this, skip the steps - and go to the step In the Action field click the Advanced button; In the appeared window call the context menu; Select the item Add Action In the Name field, enter Run function In the Action Type field select 1-Process data; In the Receiving Procedure field, select the function f_close_file Call the context menu; Select the item Add Action In the field Name enter Refresh 1210; In the Action Type field select 14-Refresh Object; In the Object field, select the object 1210 Files; Click the OK button;

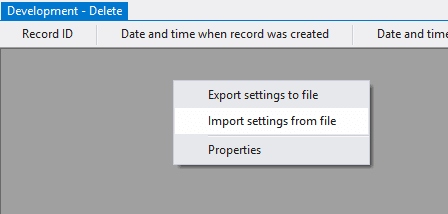

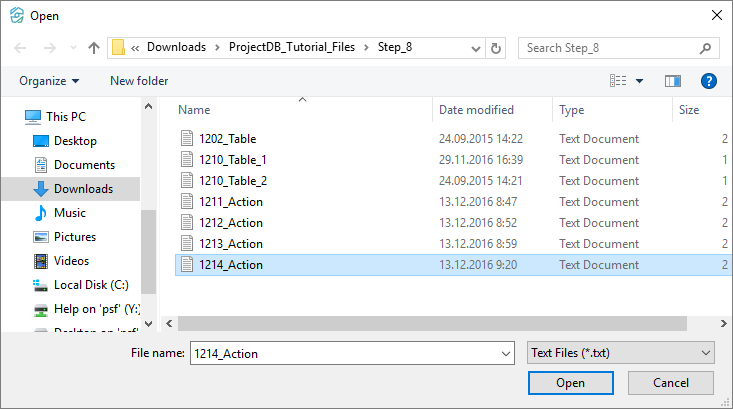

Note: If you followed the steps -, skip steps - and go to step Download the file archive containing the settings of objects; Extract the files from the downloaded archive; Open the context menu by right-clicking in the data area; Select Import settings from the file; In the appeared window specify the path to the file 1214_Action; Click the Open button;


All action settings will be imported. Save the changes by selecting Menu > Save. Close the object by clicking on the corresponding button.
