8.8. Adding Table 1210 Files



8.8.1. Connecting table 1210 to object 1202 Comments (base)

The last step is to connect table 1210 to object 1202 Comments (base).

To do this:

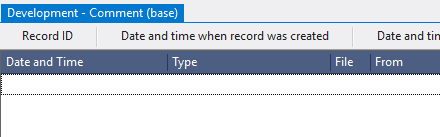

8.8.1.1. open object 1202 Comments (base) for modification by double-clicking the left mouse button;





Note: if you want to study context menu design process in detail, follow the steps 8.8.1.2 - 8.8.1.10. If you already know how to do this, skip the steps 8.8.1.2 - 8.8.1.10 and go to the step 8.8.1.11.

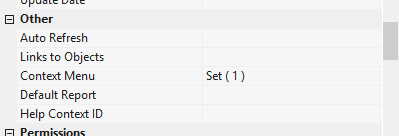

8.8.1.2. In the Context Menu field, click the Advanced button;

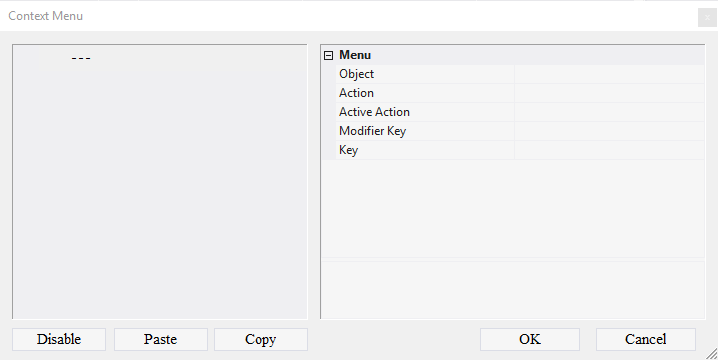

8.8.1.3. In the appeared window call the context menu;

8.8.1.4. Select Add Menu Item

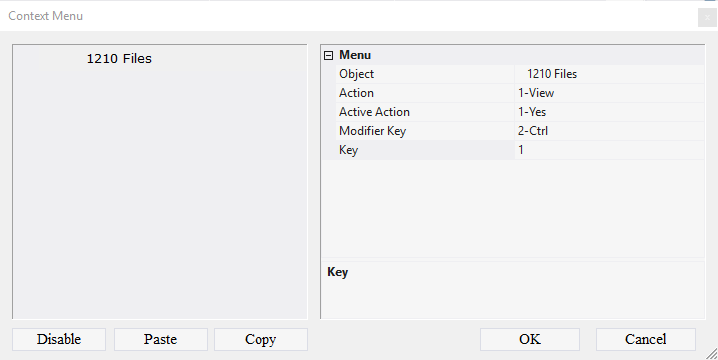

8.8.1.5. In the Object field, select the table 1210 Attached files;

8.8.1.6. In the Action field, specify the value 1-View;

8.8.1.7. In the Active Action field, specify the value 1-Yes;

8.8.1.8. In the Modifier Key box, select 2-Ctrl;

8.8.1.9. In the Key field enter 1





8.8.1.10. Click OK





Note: If you followed the steps 8.8.1.2 - 8.8.1.10, skip steps 8.8.1.11 - 8.8.1.1and go to step 8.8.1.17.



8.8.1.11. Download the file archive containing the settings of objects;

8.8.1.12. Extract the files from the downloaded archive;

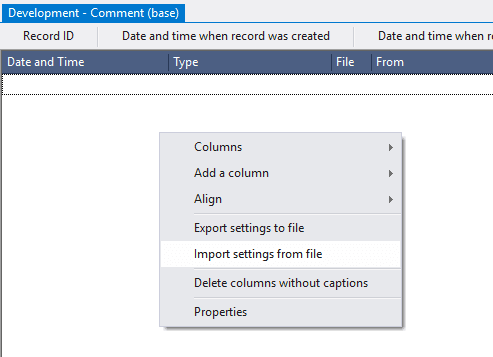

8.8.1.13. Open the context menu by right-clicking in the data area;





8.8.1.14. Select Import settings from the file;

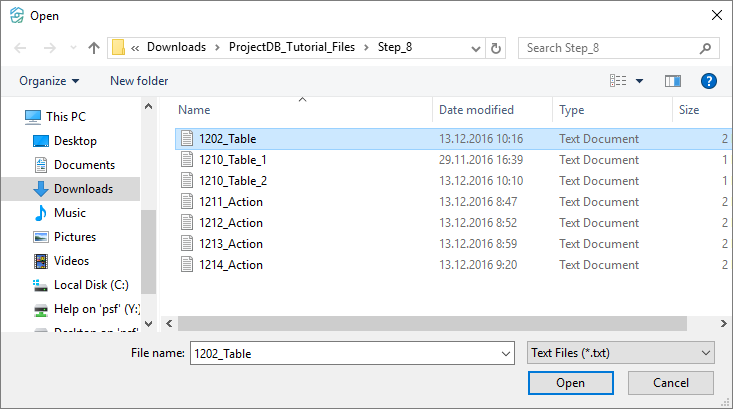

8.8.1.15. In the appeared window specify the path to the file 1202_Table





8.8.1.16. Click the Open button;



All the settings of the context menu will be imported.





8.8.1.17. Save the changes by selecting Menu > Save.

8.8.1.18. Close the object by clicking on the corresponding button.





8.8.2. Connecting table 1210 to object 1003 Closed Tickets

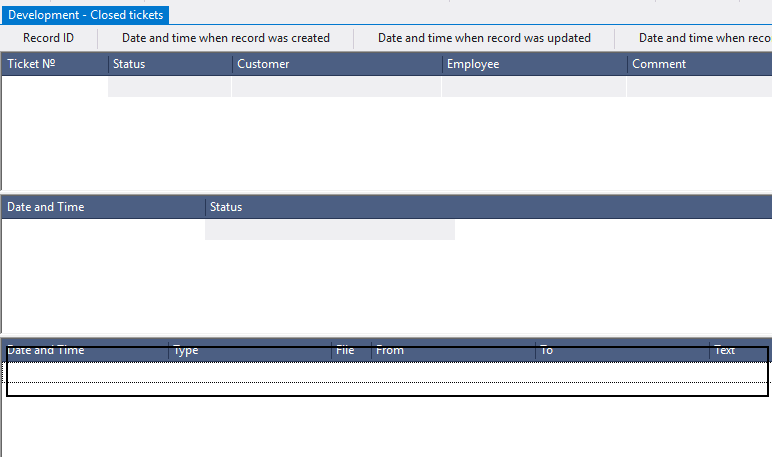

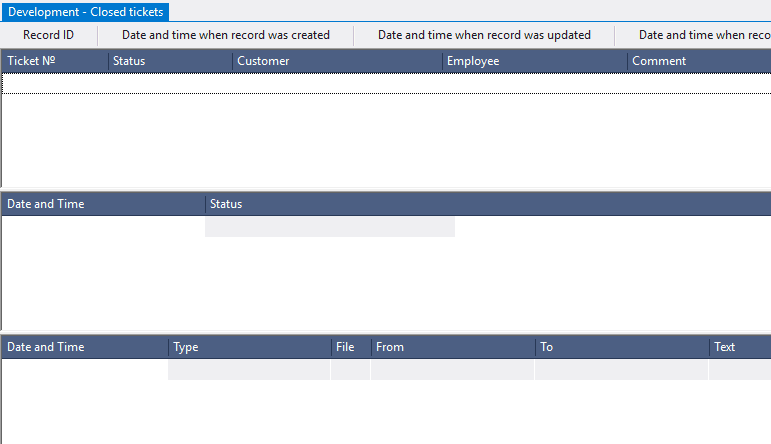

8.8.2.1. Open object 1003 Closed Tickets for modification by double-clicking the left mouse button;





8.8.2.2. Select any row in the table 1202 Comments (base)

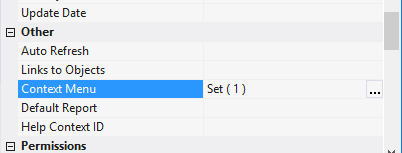

8.8.2.3. In the Context Menu, click the Advanced button;





8.8.2.4. In the opened window call the context menu;

8.8.2.5. Select Add Menu Item





8.8.2.6. In the Object field, select the table 1210 Files;

8.8.2.7. In the Action field, specify the value 1-View;

8.8.2.8. In the Active Action field, specify the value 1-Yes;

8.8.2.9. In the Modifier Key box, select 2-Ctrl;

8.8.2.10. In the Key field enter 1;





8.8.2.11. Click OK





8.8.2.12. Save the changes by selecting Menu > Save;

8.8.2.13. Close the object by clicking on the corresponding button.
